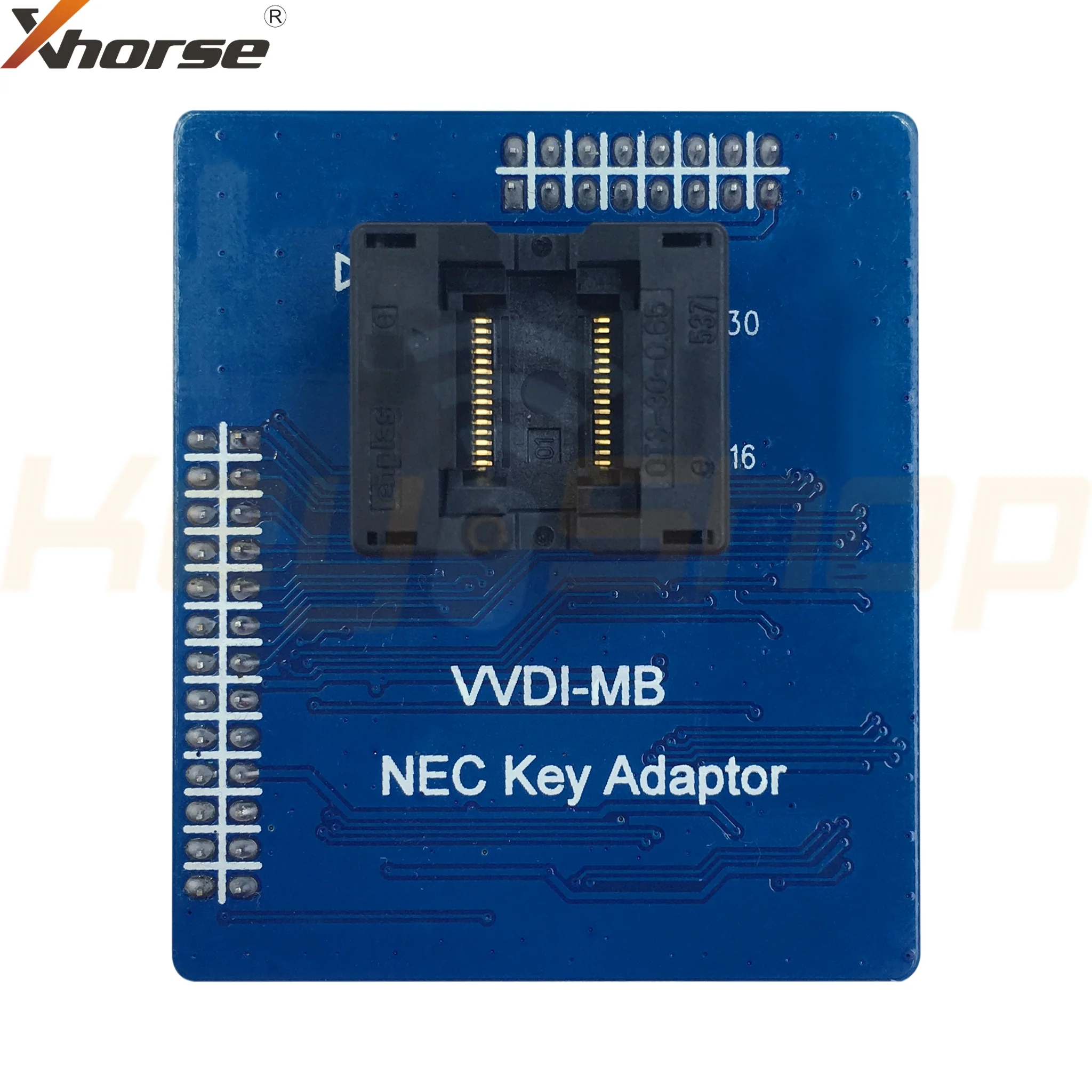

Xhorse VVDI MB NEC Key Xhorse Socket Adapter XDMB09GL

Original NEC Key Adaptor support versions:



Can Work Together with VVDI MB BGA

(Without soldering/ Without wire jumper/ Not need another adaptor)

Renew/Write new key file via NEC adaptor

Updating supports more versions

• Support v51 v57 get password directly
• Support normal key v28 v35 v40 v51 v57 renew on board
• Support keyless go keys v03 v06 v07 v08 v09 v61 renew on board
• Support normal key v28 v35 v40 v51 v57 write key file by IR or on board
• Support keyless go keys v03 v05 v06 v07 v08 v09 v59 v61 write key file by IR or on board

Notes: NEC Key Adaptor is optional, renew ESL adaptor under developing, will be released later.

The above keys all with NEC chip (not BGA type). You need solder the NEC chip from key and place it to NEC adaptor

For NEC v51, v57 version, support read password from working key directly, no need read password from EIS



For all NEC types, you must use “Identification key” to read one time before renew/write key

How to read/write key via NEC adapter with VVDI MB?



Package including:

1pc X VVDI MB NEC Key Adaptor
